Project Description

1. Innovative Construction Method

The architectural design required all buildings elements (including floors, walls and roof to be constructed out of concrete with large open spaces with exposed soffits and no roof beams to be visible from the underside.



2. Suspended Concrete Floor and Roof

The project features expansive open plan suspended concrete floors and roofs, with floor to ceiling glazing and infinity views over the swimming pool. The non symmetric geometry of the structural elements presented engineering design challenges.



3. Long Span Structural Elements

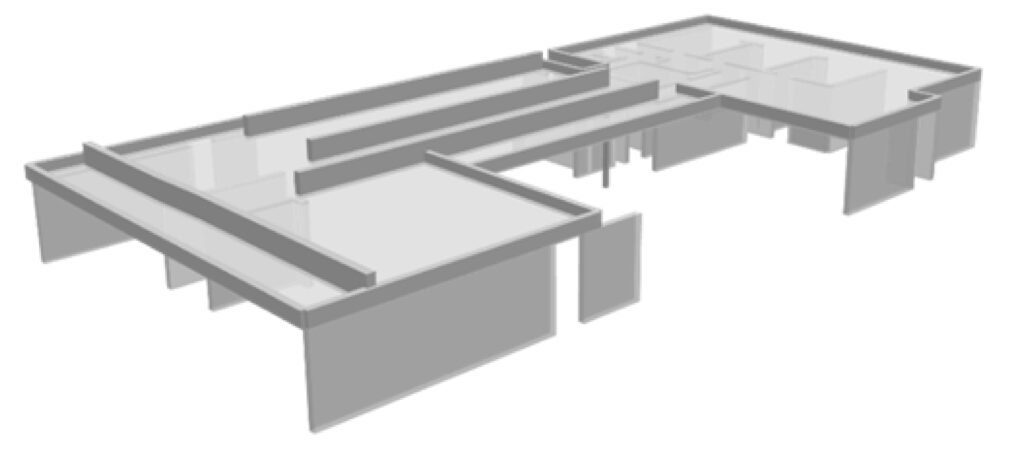

The concrete roof of the house incorporates concrete upstands and 1m deep concrete beams that span up to 14 meters. These large beams are used to provide the necessary structural support system for the long spans while maintaining the open plan design desired by the client.



4. Undercroft Store and Garage

The project includes an undercroft store and garage. An undercroft is a space beneath the main living area, often used for storage or parking. This design choice might be due to site constraints or the desire to maximize usable space.



5. Structural Analysis and Design

The project underwent a thorough structural analysis and design process. Initially, ClearCalcs was used for beam layout and design. Later, finite element analysis (FEA) software like STAADPro, Strand7, and SkyCiv were used to model the entire structure. SkyCiv was chosen for the final design due to its user-friendliness and graphical 3D output.



Challenge

Roof Design Challenge

One of the major challenges faced in the project was designing the roof slab with minimal supports to achieve the desired open plan. This led to very long spans for both beams and the roof slab.

Solution

The challenge was tackled by using FEA to design the roof as a whole plate rather than focusing on individual strips. This approach likely helped optimize the structural integrity of the roof while maintaining the client’s preference for an open interior.

The Beaumont House project showcases innovative engineering solution and the use of advanced engineering analysis tools like finite element analysis to optimize structural design. The combination of suspended concrete elements, long-span beams, and the use of FEA software reflects synergistic approach to the aesthetic and structural considerations in the design process.
